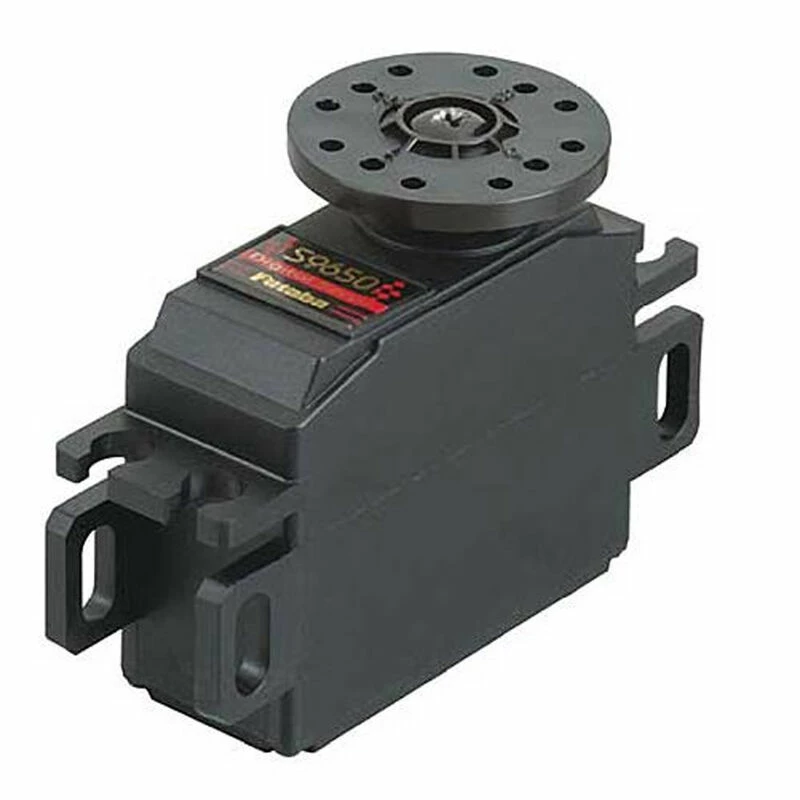

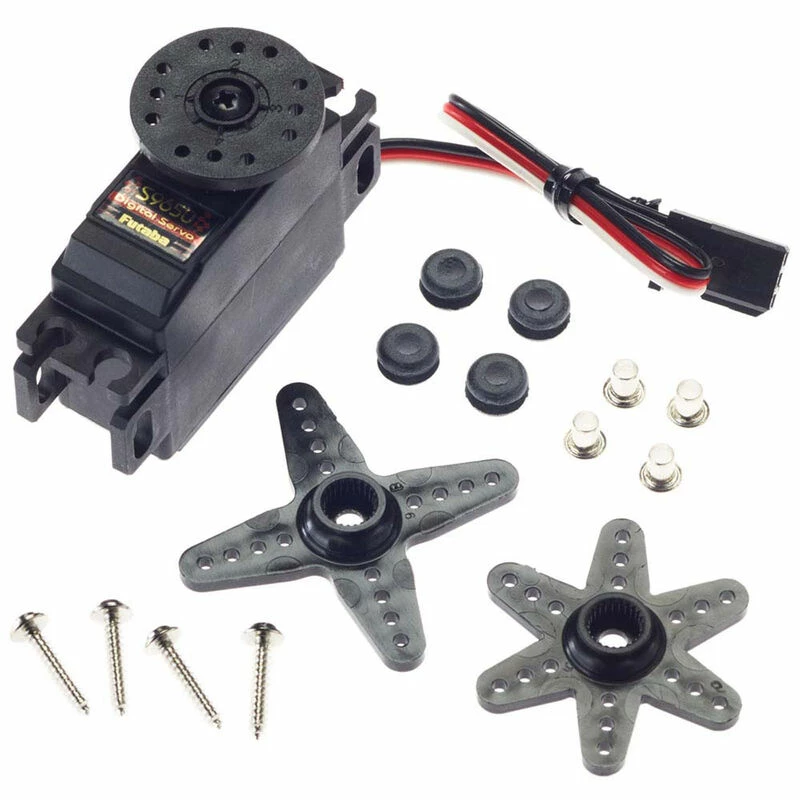

Futaba Systems S9650 Digital Mini Servo for Servos

Key Features

• Coreless motor: conventional servo motors have a steel core armature wrapped with wire that spins inside magnets. In a coreless design the armature uses a wire mesh that forms a cup that spins around the outside of a magnet. This arrangement is much lighter, which results in smoother operation and faster response time.
• Nylon Gears
• Can be used with 1/12 or 1/18 scale vehicles and electric helicopters
• Dimensions: 1.4 x 0.6 x 1.1″ (36 x 15 x 29mm)
• Weight: .92oz (26g)
• SPEED: 0.14 sec/60° @ 4.8V 0.11 sec/60° @ 6.0V
• TORQUE: 50 oz-in (3.6 kg/cm) @ 4.8V 63 oz-in (4.5 kg/cm) @ 6.0V
